Fix the Pandas: TypeError: no numeric data to plot

In this tutorial, we will learn what is ‘TypeError: no numeric data to plot‘ and how to fix it. For this, we need to understand how plots in Pandas work. Only numerical data type values can be plotted in Pandas. Python will raise the error ‘no numeric data to plot’ if we try anything other than a numerical data type.

Occurrence of this error

Example:

import pandas as pd
import matplotlib.pyplot as plt
data = pd.DataFrame({'Teams': ['A', 'B', 'C', 'D'],
                   'Scores': ['40', '38', '30', '45'],
                   'GPA': ['8.5', '7.4', '6.2', '7.6']})

print(data)
data[['Scores', 'GPA']].plot()
plt.show()

Output:

TypeError: no numeric data to plot
  • This is happening because the data type of the columns may not be numerical. Let’s check it with dtypes() function.
print(data.dtypes)

Output:

Teams     object
Scores    object
GPA       object
dtype: object

Fixing the error: TypeError: no numeric data to plot

We can fix this error using two methods. They are,

Using astype()

Syntax:

data['column_name']=data['column_name'].astype(datatype)

Let us fix the error by converting pandas object data type into numeric using this function,

import pandas as pd
import matplotlib.pyplot as plt
data = pd.DataFrame({'Teams': ['A', 'B', 'C', 'D'],
                   'Scores': ['40', '38', '30', '45'],
                   'GPA': ['8.5', '7.4', '6.2', '7.6']})

data['Scores']=data['Scores'].astype(float)
data['GPA']=data['GPA'].astype(float)
data[['Scores','GPA']].plot()
plt.show()

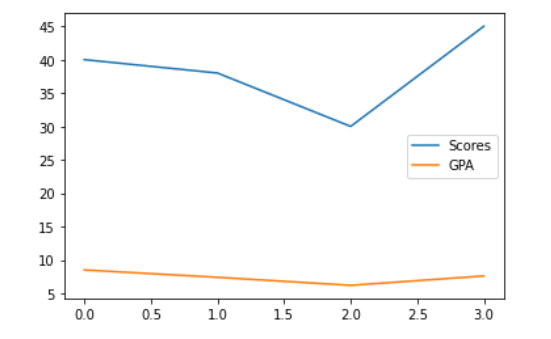

Output:

Pandas: TypeError: no numeric data to plot

  • This is successful because we changed the data type of the columns into numeric. Let’s check it,
print(data.dtypes)

Output:

Teams      object
Scores    float64
GPA       float64
dtype: object

Using to_numeric()

Syntax:

data['column_name']=pd.to_numeric(data['column_name'])

This is another method used to change data type into numeric. Let us try to solve this issue using this method,

import pandas as pd
import matplotlib.pyplot as plt
data = pd.DataFrame({'Teams': ['A', 'B', 'C', 'D'],
                   'Scores': ['40', '38', '30', '45'],
                   'GPA': ['8.5', '7.4', '6.2', '7.6']})

data['Scores']=pd.to_numeric(data['Scores'])
data['GPA']=pd.to_numeric(data['GPA'])
data[['Scores','GPA']].plot()
plt.show()

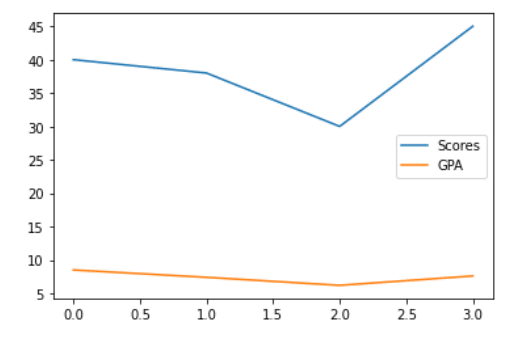

Output:

Pandas: TypeError: no numeric data to plot

  • This is successful because we changed the data type of the columns into numeric (int or float). Let’s check it,
print(data.dtypes)

Output:

Teams      object
Scores      int64
GPA       float64
dtype: object
