Implementing Count-Min Sketch in Java

Today, we’ll be learning about how to implement count-min sketch in Java programming language.

Implementing a count-min sketch in java involves the use of hash functions and basic string operations. Having prior knowledge of these topics will help you understand the functions used better. In case, you are new to these topics, don’t worry, the functions and operations performed will be simple and self-explanatory and the comments provided will guide you throughout.

An important note is that for implementing count-min sketch in Java, you need to save your file with the name of the class in which the ‘main()’ code snippet is implemented. If the file is saved with a different class-name, an error will pop up.

What is Count-Min Sketch?

Count–Min Sketch is a probabilistic sub-linear space streaming algorithm that is mostly used to summarize the given data stream in a couple of ways. Count–min sketches may seem quite similar to ‘Bloom filters’. Precisely, bloom filters represent sets, whereas Count-min sketch represents multi-sets and the frequency tables.

We use a matrix of size width ‘w’ x  depth ‘d’ (size = w x d). Consider an element ‘A’ in the incoming stream. To have the count of element ‘A’ incremented, we simply hash it with the subsequent hash functions,i.e, once for each of the rows in depth ‘d’. The count will then be incremented in one cell per row. (∀ is a symbol for ‘for all’ or ‘for every’,  ∈ – ‘lies in’ or ‘belongs to’)

  1. Firstly, i{1,,d},j{1,,w},:count[i,j]=0∀i∈{1,…,d},j∈{1,…,w},: count ⁡[i,j]=0
  2. Incrementing the count (of element ‘A’): i {1,,d} : count [i , hi(A)] += 1 ∀ i ∈ {1,…,d} : count ⁡[i,hi(A)] +=1
  3. Retrieving the count (of element ‘A’): mind i=1 = count [i , hi(a)].

Implementation in Java

In this code, 4 hash functions have been used. In order to customize the accuracy, one can increase or decrease the number of hash functions.

import java.util.Scanner;

class Count_MiniM_Sketch
{
/*Declaration*/
    private int[] H_1;
    private int[] H_2;
    private int[] H_3;
    private int SizE;
    private static int DEFAULT_SIZE = 11;

/* here comes constructor */
    public Count_MiniM_Sketch()
    {
        SizE = DEFAULT_SIZE;
        H_1 = new int[ SizE ];
        H_2 = new int[ SizE ];
        H_3 = new int[ SizE ];
    }

/* This is the function to clear all our counters */
    public void clear()
    {
        SizE = DEFAULT_SIZE;
        H_1 = new int[ SizE ];
        H_2 = new int[ SizE ];
        H_3 = new int[ SizE ];
    }
/* This is the function to insert Values */
    public void insert(int ValuE)
    {
        int HasH_1 = HasH_FunctioN1(ValuE);
        int HasH_2 = HasH_FunctioN2(ValuE);
        int HasH_3 = HasH_FunctioN3(ValuE);
        /** increment counters **/
        H_1[ HasH_1 ]++;
        H_2[ HasH_2 ]++;
        H_3[ HasH_3 ]++;
    }
/* This id the function to get the sketch count */
    public int sketchCount(int ValuE)
    {
        int HasH_1 = HasH_FunctioN1(ValuE);
        int HasH_2 = HasH_FunctioN2(ValuE);
        int HasH_3 = HasH_FunctioN3(ValuE);
        return MiniM( H_1[ HasH_1 ], H_2[ HasH_2 ], H_3[ HasH_3 ] );
    }
    private int MiniM(int a, int b, int c)
    {

/*Hunting for the minimum*/
        int MiniM = a;
        if (b < MiniM)
            MiniM = b;
        if (c < MiniM)
            MiniM = c;
        return MiniM;
    }
                                                 /* HasH_function#1 */
    private int HasH_FunctioN1(int ValuE)
    {
        return ValuE % SizE;
    }
                                                  /* HasH_function#2 */
    private int HasH_FunctioN2(int ValuE)
    {
        return ((ValuE * (ValuE + 3)) % SizE);
    }
                                                  /* HasH_function#3 */
    private int HasH_FunctioN3(int ValuE)
    {
        return (SizE-1)-ValuE%SizE;
    }
                                                  /*Lets see all the tables */
    public void print()
    {
        System.out.println("\n The counter tables are as follows: \n");
        System.out.print("H_1 : ");
        for (int i=0;i<SizE;i++)
        {System.out.print(H_1[i] +" ");}
        System.out.print("\n H_2 : ");
        for (int i=0;i<SizE;i++)
        {System.out.print(H_2[i] +" ");}
        System.out.print("\n H_3 : ");
        for (int i=0;i<SizE;i++)
        {System.out.print(H_3[i] +" ");}
        System.out.println();
    }}

public class Count_MiniM_Sketch_Test                 /*Remember to save the file with this name*/
{
    public static void main(String[] args)            /*Main() function*/
    {
        Scanner scan = new Scanner(System.in);
        System.out.println("implementing Count-Min Sketch in java\n\n");

/* Here comes the object of our class Count MiniM Sketch */
        Count_MiniM_Sketch cms_var = new Count_MiniM_Sketch();

        char ChaR;
/*  While true, perform the operations as follows */
        do
        {
            System.out.println("\n Operations:::\n");
            System.out.println("1. Would you like to Insert? ");
            System.out.println("2. What is the sketch count?");
            System.out.println("3. Do you wish to clear the counter?");
 /*taking input the selected choice of operation from user*/
            int c = scan.nextInt();
            switch(c)
            {
            case 1 :
                System.out.println("Enter the integer Value:");
                cms_var.insert(scan.nextInt() );
                break;

            case 2 :
                System.out.println("Enter the integer Value");
                int ValuE = scan.nextInt();
                System.out.println("\n Sketch count for "+ ValuE +" = "+ cms_var.sketchCount( ValuE ));
                break;

            case 3 :
                cms_var.clear();
                System.out.println("Your counter is clear\n");
                break;
            default :
                System.out.println("Oops! that's a wrong entry\n ");
                break;
            }
/* Here comes the counter table */
            cms_var.print();

            System.out.println("\n Would you like to continue? (Type y or n) \n");
            ChaR= scan.next().charAt(0);

        } while (ChaR== 'Y'|| ChaR== 'y');
    }
}

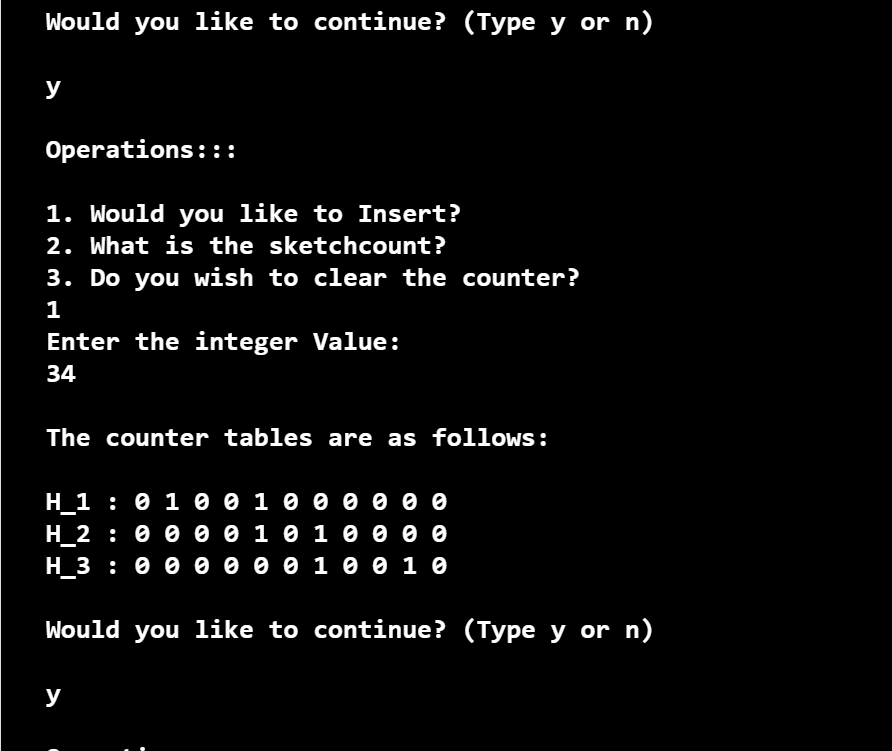

The output will be as follows:::

Output for Count-Min Sketch in Java

output for Count_min sketch in java

Output for Count-Min sketch in java

output for Count-Min Sketch in Java

output for Count-Min Sketch in java

Prior knowledge of java scanner and hash functions will be helpful, refer: Working with HashMap (Insertion, Deletion, Iteration) in JavaScanner Class in Java.
