# How to create a legend for a contour plot in matplotlib

In this tutorial, we are going to see how to create a legend for a contour plot in matplotlib in Python. To do this we need to know about matplotlib library. Matplotlib is a data visualization library in python which is used to represent data in the form of plots and graphs.

## What is a contour plot?

A contour plot is a technique of plotting constant z slices called a contour on a 2-Dimensional format to represent a 3-dimensional surface. Here, by slices, we mean that a 3-D graph is cut into equal partitions along an axis and the boundaries are merged together in a 2-D plane. The main purpose of a contour plot is to display a 3-Dimensional surface in a 2-Dimensional plot.

## Create a contour plot in matplotlib

import matplotlib.pyplot as plt import numpy as np x=np.linspace(-2,2) y=np.linspace(-2,2) X,Y=np.meshgrid(x,y) Z=X**2+Y**2 plt.contour(X,Y,Z) plt.show()

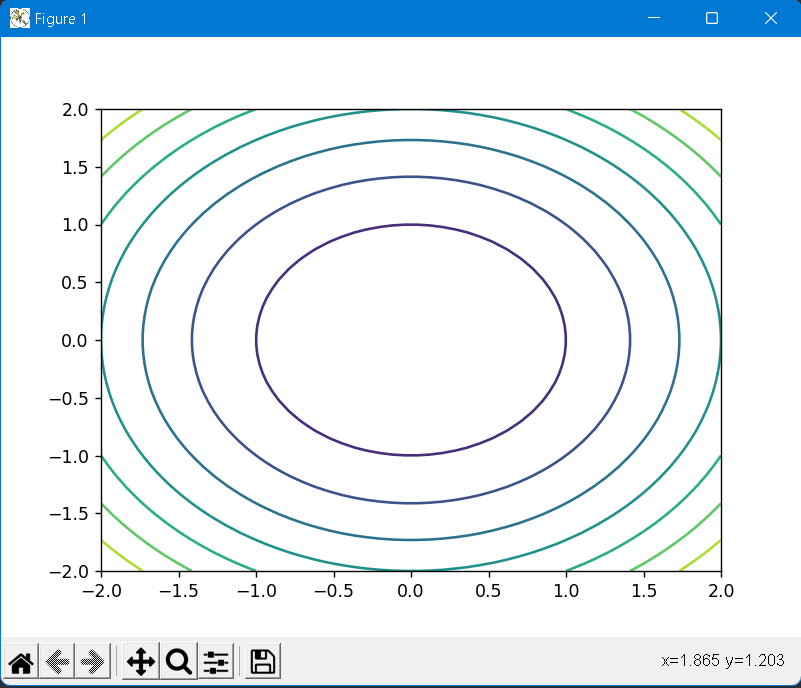

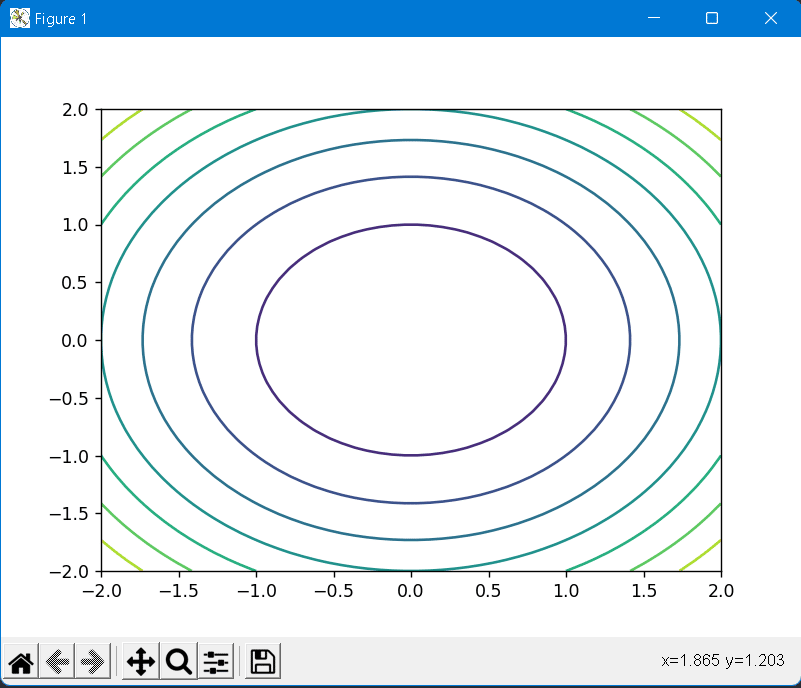

**Output:**

**Explanation:**

- Import matplotlib module to plot the contour plot and NumPy to number the axis and create grid layout.
- The
`linspace()`

is a function in NumPy that is used to specify the range of the axis. - The
`meshgrid()`

function is used to create a grid layout for the specified values. - The value of z specifies how to slice the 3-D graph into a 2-D plane.
- Contour() is a function that is used to generate the contour plot for the given values.
- Finally, the show() function is used to display the graph.

## Creating a legend in matplotlib

import matplotlib.pyplot as plt import numpy as np x=np.linspace(-2,2) y=np.linspace(-2,2) X,Y=np.meshgrid(x,y) Z1=X**2+Y**2 Z2=(X-1)**2+(Y-1)**2 c1 = plt.contour(X, Y, Z1) c2 = plt.contour(X, Y, Z2) h1,l1 = c1.legend_elements() h2,l1 = c2.legend_elements() plt.legend([h1[0], h2[0]], ['Contour 1', 'Contour 2']) plt.show()

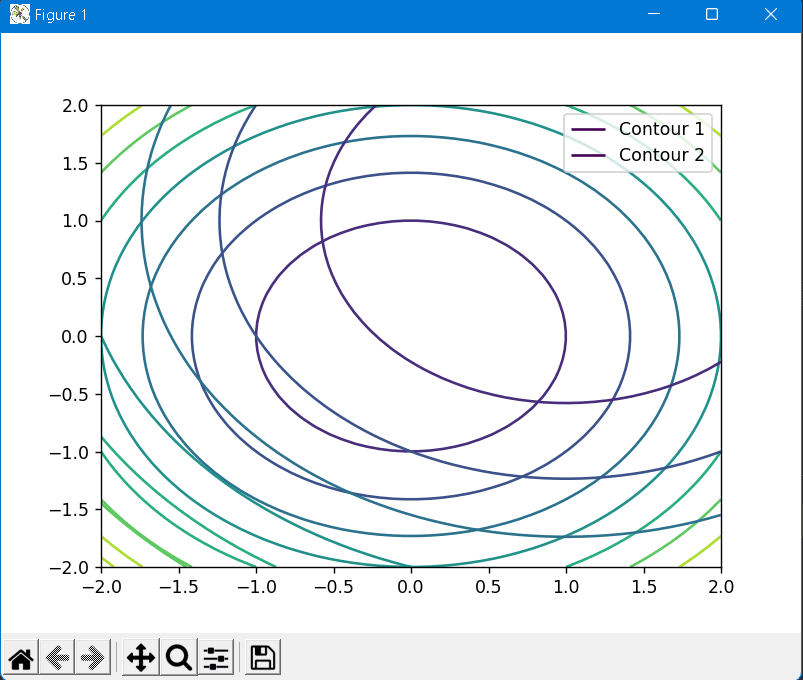

**Output:**

**Explanation:**

- Import matplotlib module to plot the contour plot and NumPy to number the axis and create grid layout.
- The
`linspace()`

is a function in NumPy that is used to specify the range of the axis. - The
`meshgrid()`

function is used to create a grid layout for the specified values. - The value of z specifies how to slice the 3-D graph into a 2-D plane here two values are received in order to plot 2 contour plots.
- The
`contour ()`

function is used to generate the contour plot for the given values. - The
`legend_elements()`

is a function that is used to check how many legend entries are to be created. - Finally, the
`legend()`

function is used to assign the given name for the plots and the graph is displayed using the show() function.
